hdmi matrix switch from China manufacturer - lenkeng technology limited

Price:	1.0~1.1 USD
Payment Terms:	T/T,WU;paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: LKV344

Production Capacity: 10000 pcs per month

Delivery Date: in 3~15

Means of Transport: Air

Packing: 50pcs per carton

hdmi products: hdmi 1.3

4x4 HDMI Matrix Switch
hdmi matrix switcher
4x4 hdmi switcher
hdmi matrix
4 ways hdmi switcher

4x4 HDMI Matrix Switch with Remote Control and RS232

4x4 HDMI Matrix Switch
hdmi matrix switcher
4x4 hdmi switcher
hdmi matrix
4 ways hdmi switcher

LKV344 4X4 HDMI Matrix Switch is a full routing type 4-by-4 HDMI Matrix Switch, and any one of input sources is able to be displayed simultaneously on 4 displays.

It offers HD video solution for super market; shopping Mall; HDTV, STB, DVD and projector factory; data control center; information distribution; conference room presentation; education and training, corporation show room, luxurious house, etc.

Features

-Support full HDMI resolutions 1080p, 1080i, 720p, 720i and standard video format;
-Multiple Switching modes: IR remote control, operate manually or operate via RS232 port;
-With IR extender: enlarge remote control signal;
-Rack-mountable: with mounting kit and screws;
-Input video signal: 0.5-1.0 volts p-p;
-Input DDC signal: 5 volts p-p (TTL);
-Maximum transmission distance: 10 meters by 28AWG cable; 15 meters by 26AWG cable(for further distance, HDMI extender is optional);
-Power consumption: MAX. 36W;
-Power supply: 12V DC, 3A

Connection Image

Interface Specification

Connection Image

Interface Specification

Connection Image

Interface Specification

Connection Image

Interface Specification

Connection Image

Interface Specification

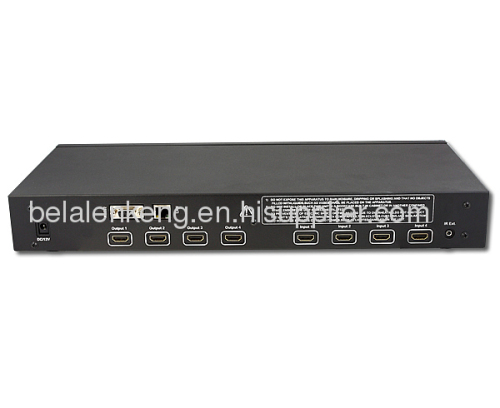

Front:

1.Power input                         2.4 HDMI Outputs
3.4 HDMI Inputs                     4.IR extension
5.RS232 port1.Power input

Back:

1.Output1 selection                                 2.Output1 LED
3.Output2 selection                                4.Output2 LED
5.Output3 selection                                 6.Output3 LED
7.Output4 selection                                 8.Output4 LED
9.IR Receiving window.                         10.Key lock button
11.LED Indicator of locking status      12.Power Switch

Accessories & Package
